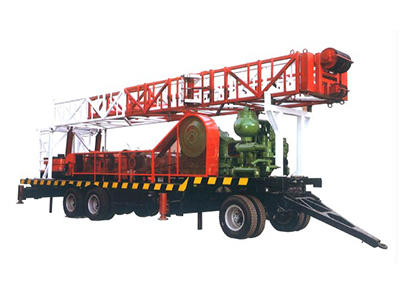

SPT-1500鉆機為全拖懸掛式，整體運輸方便。 機械傳動，轉盤回轉，傳動平穩；鉆機采用雙卷 揚結構，塔頭平移可使副卷揚中心自動對中，接 卸鉆桿方便快捷。鉆塔起降、伸縮液壓操作，鉆 機整體液壓支腿調平，孔口板液壓開合，省力便 捷；增加機械副支腿使鉆機更加安全、穩固。
本機適用于地質勘察、水井鉆井、地熱開發、 鹽井鉆進、地浸鈾礦開采、煤層氣開發等工程。
SPT-1500 drilling rig is trailer-type drilling rig and eady to transport.it is mechanical transmission and its rotary table rotate back and transmit very smooth.This rig adopts double winch structure and its tower head translation can make the auxuliary winch alignment automatically to the center.it is concenient to install and uninstall the drill rod The whole derrick is hydraulic landing, the whole rig hyd raulic support leg adjust level and the plate is hydra ulic open and close which is convenient; It also addmech anical auxiliary landing leg and make the drilling equip ment more safe and stable.Mainly used in geological ex ploration, water well drilling, geothermal development, salt well drilling and coal-bed methane development project.
主要技術參數 Technical Specifications
| 鉆孔深度 Drilling Depth(m) | 1500 1000 |
|
轉盤通役
Opening DtamGter of Rotary Tablo(mm)
|
660 |
|
轉盤轉速
RPM of Rotary Table ( r/min)
|
正反37、52、84、145 |
|
主卷揚提升能力
Hoist Capadtyol roaster WindXt)
|
9 |
|
副卷揚提升能力
Hoist Capacty of Auxftary Wnctxt)
|
4 |
|
主動鉆桿
Kelly {mm)
|
□108x108x10500 |
|
孔內鉆桿
Dnil Pipe ( mm )
|
φ 89x9500φ127x9500 |
| 相桿結構形式 Mast Structured | n |
|
有效高度
Effective Height ( m ）
|
15.5 |
|
水龍頭負敏能力
Loading Capacity of Power Swivel (t)
|
75 |
|
游動滑車負裁能力
Loading Capacity of Traceling Block (t)
|
75 |
| 鉆機動力 Power ( kw) | 110 |
| 泥漿泵型號 Mud Pump Model | TBW1200/7 |
|
泥漿泵動力
Mud Pump Power ( kw )
|
110 |
| 整機重量 Weight (t) | 35 |
| 外形尺寸Dimension ( m ) |
(運輸狀態)14.5x2.5x4.3
(工作狀態)11x3.7x15.7
|
